Air Scaler Handpiece Sonic

Sonic Air Scaler Handpiece

Pneumatic Air scaling is a relatively new type of dental scaler. It can convert the pneumatic energy into frequency vibration energy to remove dental calculus, and the vibration frequency is low, moreover, the amplitude is also adjustable. So it will feel very comfortable when operating.

The air scaler has options of power settings and high vibration amplitude, making it suited for a wide range of clinical applications.

It can be used for periodontics, endodontics, power boosting, or as a scaler with just one selection.

Water is provided through a built-in inner filter to ensure the spray water quality.

Its smooth surfaces and sleek, ergonomic design make cleaning and maintaining it a breeze, assuring infection control and patient safety.

Kavo Multiflex LUX Coupling compatible

This air scaler handpiece is compatible with KaVo Multiflex LUX coupling with led light.

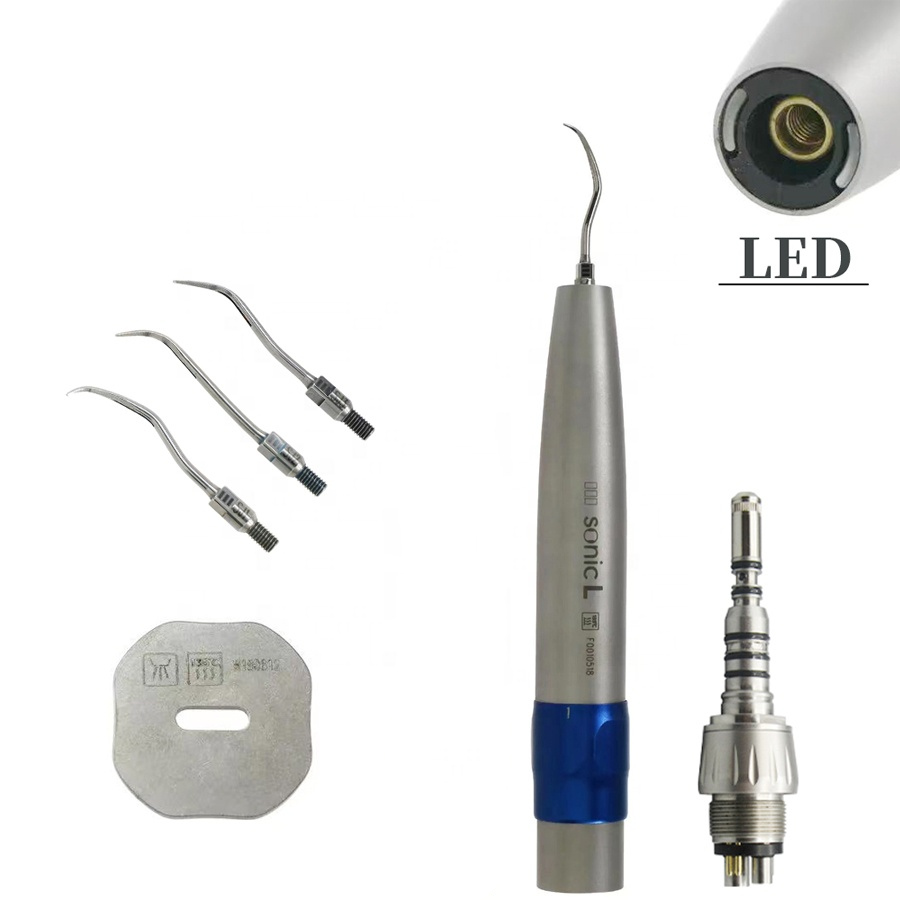

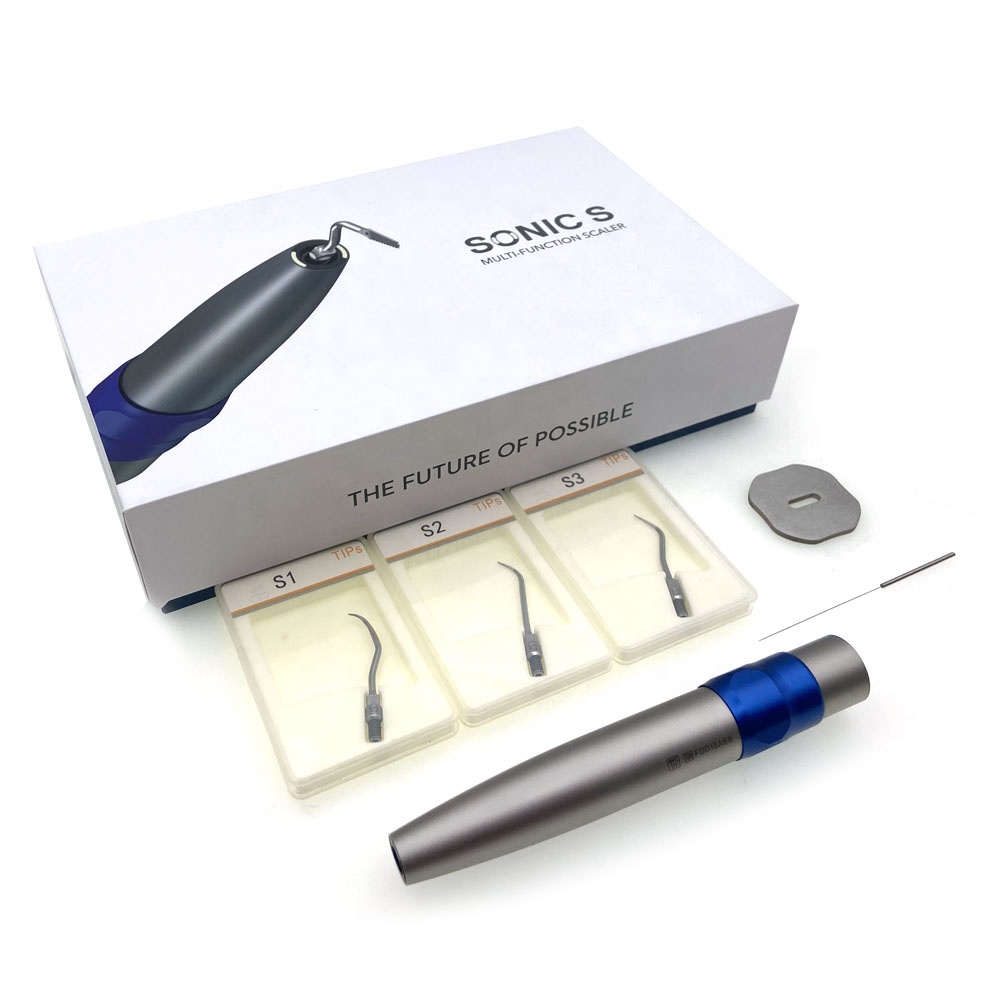

Scaler handpiece packing list comes to the following unit:

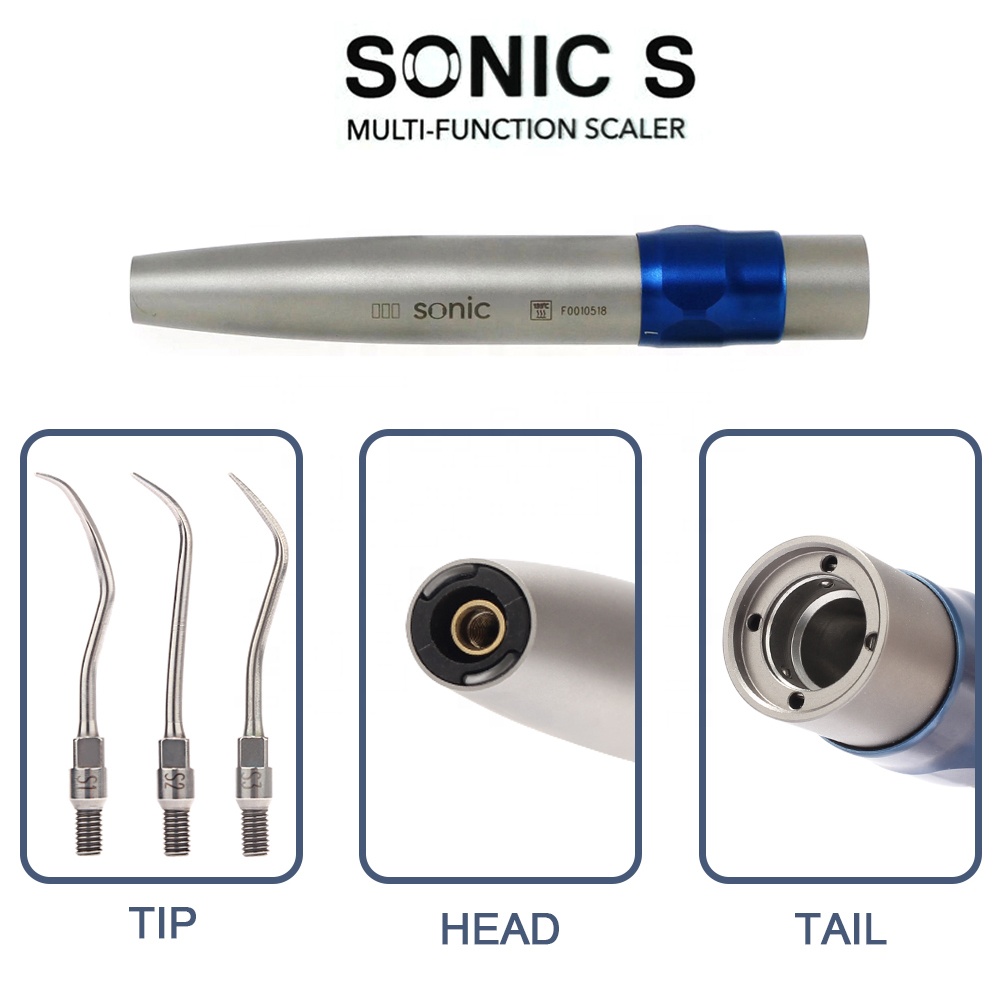

• 3pcs KaVo system scaler tips (SJ1, SJ2,SJ3)
• 1pc scaler handpiece
• 1pc KaVO LED coupling compatibility connector
• 1pc wrench

Power Adjustment:

1. Power is adjustable from gentle to standard, switch on the blue ring

2. Safety locking is at power level 2.

3. To bypass the safety locking, finger press the blue ring forwarding, then turn the power to level 3.

Technical Parameters:

• Operating pressure: 2.5 – 3 bar
• Water pressure: 0.5 – 0.7 bar
• Coolant flow rate: 30 – 60ml/min
• Minimal coolant flow: 30 ml/min
• Air consumption: 20 – 40 l/min
• Oscillation frequency: 5500 – 6000 Hz
• Oscillation amplitude: Less than 200 microns
