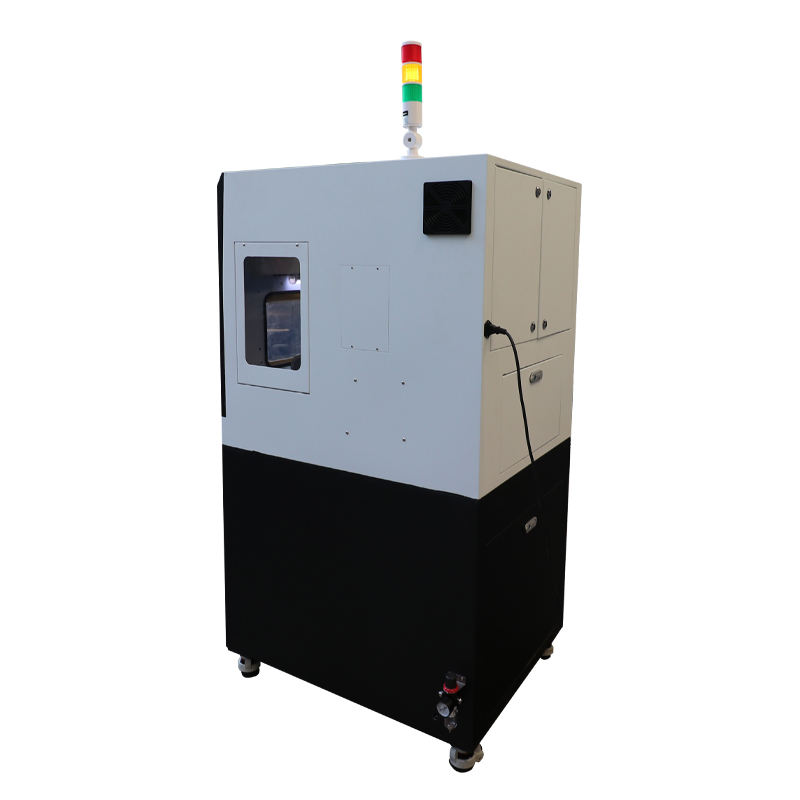

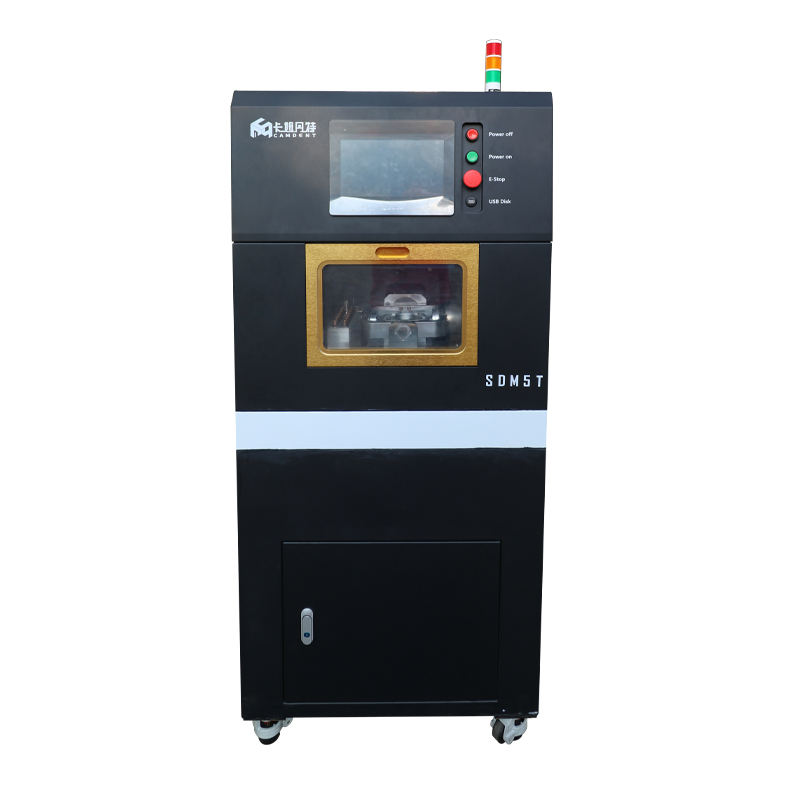

Transform your dental laboratory with 5-axis all-in-one Wet/Dry CAD-CAM restoration machine that delivers exceptional precision, efficiency, and compatibility.
Join the CAD/CAM revolution and take your dental laboratory to the next level with our Dental Lab Milling Machine. With its open controller system, intelligent processing, and high efficiency, you’ll be able to produce exceptional restorations in no time.
Packing dimension: 1100*900*1800mm , Net Weight 400kg, Packing weight: 450kg.
Contact sales to get agent price, and large dimension equipment delivery solution.
| Weight | 450 kg |
|---|---|
| Dimensions | 1100 × 900 × 1800 cm |
| Plugin |
110V 60Hz ,220V 50Hz |

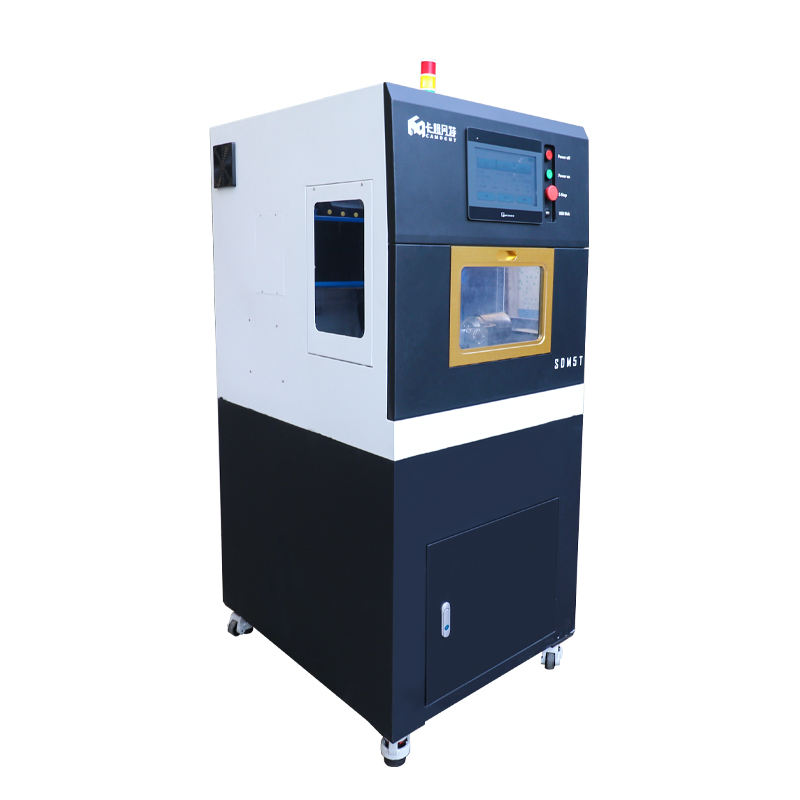

5 axis dental milling machine, all in one cad/cam dentistry solution
Dental Lab Milling Machine – the ultimate all-in-one dentistry CAD/CAM restoration product.

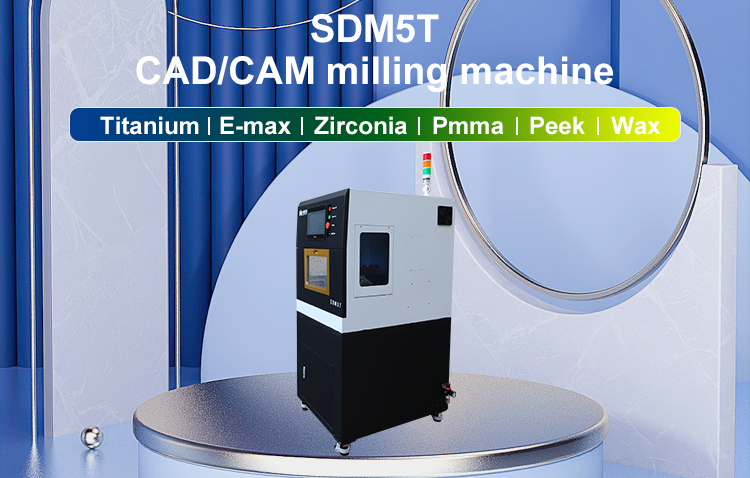

With a wide range of CAD-CAM block materials, including titanium & cobalt-chrome block, wax, pmma, peek, lithium disilicate (E-max), zirconia, pre-milled titanium and cobalt-chrome implant abutment, milling machine offers excellent compatibility and is an ideal choice for high-precision restorations, including bridges, frames, splint, abutment, base, and even complicated operations like zirconia restoration.
The machine is equipped with a premium spindle, a smart CAM nesting system, and an intelligent touch screen. These features ensure better disc handling, wider material capabilities, and automatic tool change, delivering higher efficiency, and exceptional results.
Parameter:
| CNC controller | 5 axis dental system with touch screen | |
| Model | Dental Lab Shop-5T | |
| Milling mode | Dry/Wet | |
| Millable material | Titanium,Zirconia,Wax,PMMA,Chrom Cobalt,glass ceramics,E-Max,Peek | |
| Product type | Crown/coping, Bridge, Inlay/onlay,implant bar,abutment/abutment bridge,RPD,full denture | |
| Spindle power | 2500W or 4000W | |
| Speed of spindel | 3000-60000rpm/min | |
| Spindle cooling | Water-cooled | |
| A/B axis motor | 100W with High precision slope gear reducer | |
| X/Y/Z axis motor | 400W servo motor | |
| Rotation range | A axis | ±360° |
| B axis | ±25° | |
| Attachable bur(tool) | shank diameter | 6mm |
| Length | 45mm | |
| Number of burs(Tools) housed | 30 pcs | |
| Tool change and check | Fully automatic | |
| Compatible compressed air | 0.6MPa | |
| Loadable workpiece shape | External Diameter | 98mm |
| Max Height | 25mm | |
| Min. Height | 10mm | |
| External dimensions | Length | 890mm |
| Weight(Depth) | 700mm | |
| Height | 1590mm | |
| Packing dimension | 1100*900*1800mm | |
| Weight | 400kg | |
| G.weight | 450kg | |
| Input Voltage | Single-phase 220V 50Hz/60Hz | |
| Control command set | NC code | |
| Positioning accuracy | ±0.02mm | |
| Average milling time(dental crown) | Zirconia | 8-15 min |
| Wax | 3-6 min | |
| PMMA | 8-10 min | |
| Titanium | 10-15 min | |
Several key features that set it apart:
- Open Controller System:
Our machine supports the international ISO standard G code, making it compatible with popular CAM software such as HyperDent, SUM3D Dental, GO2dental, WorkNC dental, and Delcam Dental. This feature offers flexibility, so you can use the software that works best for your laboratory’s needs.
- Intelligent Processing:
The milling machine features an excellent and simple man-machine interface, with touch screen control and a unique CAD/CAM processing strategy. This eliminates the need for professional CNC programmers, and instead offers one-button operation, making it easy to use for anyone. The machine provides stable operation and offers exceptional results.
- High Accuracy:
Our machine’s body structure adopts the industrial standard cast iron and cast aluminum structure, which provides high rigidity, no deformation, stable precision, and a long service life. Additionally, the mechanical transmission part adopts Germany C3 grade high precision ball screw and P grade linear guide rail. These features offer high accuracy and precise results.
- High Efficiency:
Our machine adopts a high-power frequency conversion and high-speed tool changing spindle with large torque and high precision. It can process various materials with high efficiency, making it a perfect choice for high-volume laboratories.
